Click Any Price Below To Buy
| Height (On This Row) Width (Below) | 8’0″ | 9’0″ | 10’0″ |
| 8’0″ | Order Now | Order Now | Order Now |
| 9’0″ | Order Now | Order Now | Order Now |
| 10’0″ | Order Now | Order Now | Order Now |
Features Include:
Our company wants to share that these key steel roll-up door features are standard. There is no need for expensive options or upgrades.
Curtain Features
- Grade 80 steel
- 26-gauge galvanized corrugated steel
- Over 30 Color Options
- Wash coat over primer interior side
- Super Durable Polyester paint coatings, which are corrosion resistant
- 40-year film integrity warranty — up to 30-year chalk and fade
- Flexible nylon wear strips
Guide Features
- Vinyl guide wear strip
- 16 gauge galvanized
- Bolt on head stop ¼” thick steel
- Pre-punched for lock
- 2 ¼” guide depth

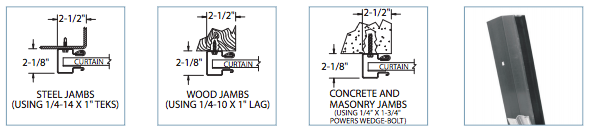

- Universal jamb mount
Description for this block. Use this space for describing your block. Any text will do. Description for this block. You can use this space for describing your block.
Bottom Bar Features
- 2” by 1 ½” galvanized angle
- 24 gauge acrylic-coated galvalumed roll formed steel
- Stainless steel bolts
- Bulb astragal (Durometer 75)
Axle/Torque Tube Features
- Oil tempered torsion springs conforming to ASTM A229
- Low friction, grease-filled steel ball bearings staked in each drum
- 18-gauge, 9 ½” diameter galvanized drum
- 26 gauge spiral torque tubing that houses axle assembly
Hardware Features
- Bottom bar mounted 12 gauge slide locks – 2 per door
- Bottom bar mounted 16 gauge step plate – 2 per door
- Ratchet tensioner device
- 12 gauge door mounting brackets
Features of the Model 1000 Mini Storage Door
The 26 gauge corrugated door curtain is manufactured from full hard galvanized grade 80 steel and coated with Super Durable Polyester paint that is backed by a 40 year film integrity and a 25 year no-fade limited paint warranty. Available in sizes up to 12’0” x 14’0” and in over 20 standard colors.
The 1000 Model Series is tough, durable, wide, heavy-duty nylon stripping controls curtain stretch and works in conjunction with the vinyl guide strip to reduce wear and deaden sound.
The slide bolt lock assembly affixed to the bottom bar at each end of the door curtain fastens through the guide to securely keep the door locked and in the down position. Padlocks can be attached to the slide to further secure the door.
The flat door stop slide makes installation quicker. Simply slide through the holder on the guide and affix with a fastener.
9 ½” diameter drums allow for lower headroom requirements. An enclosed barrel houses the dead axle assembly and protects the factorylubricated springs from direct contact with environmental elements. The inherent strength provided by the spiral barrel minimizes axle deflection, providing smoother operation. Because the curtain is attached by screws and not seamed to the barrel, cost-effective replacement of either independent assembly is quick and easy..
Grease-filled, shielded radial ball bearings at the drums provide longevity and smooth operation. Drums are embossed for rigidity.
A cam-action spring tension holding device allows quick, easy and equal adjustment of the tension on all springs simultaneously from one end of the door. The cam tensioner bites into the axle helping to eliminate the unwanted spinning of the axle during the initial spring loading or adjustment process.
The ratchet tensioning device supplied as standard equipment on our door offers a simpler method of tensioning, while more accurately fine tuning all the springs on the door at the same time. There is no extra hardware required. Eight different positions on the tension wheel allow one to perfectly balance the door every time. There are no pins required to hold the tension on the spring. You simply just click it.
Door Options For Model 1000
Magnetic Zinc Coated Steel or Optional Stainless Steel Latch – Our patented mini latch features a cover plate made from a heavy gauge yellow zinc coated steel or optional stainless steel. In addition, the latch cover protects the slide from tampering by completely covering the slide, with the exception of a tab used to operate the latch.
To further secure the door, the latch’s two-inch throw, with its magnetic properties, can be incorporated with the new guidemounted security devices. This versatile design affords you the ability to utilize padlocks, cylinder locks or both.
Top Draft Stop – 2 1/4″ Black “L” shaped neoprene weather stripping affixes directly to the door curtain where the curtain meets the header and provides a barrier to weather elements. Rolls up in the roll when the door is in the up position.
Insulation is made of a foil-backed, dual-layer polyethylene air-bubble insulation secured in place with a strong adhesive and joined by mylar film (top draft stop and side draft stops are also included).
Hood – Recommended for exterior mount applications or for cosmetic look. If the door is being mounted on the outside of the building (where the drum is exposed to the weather elements) they’re going to want a hood (or protective over-hang) because the drum of the door isn’t weather-proof and will be damaged by rain, snow, etc. Insulated doors can’t be mounted on the outside of the building or have a reverse curtain.
Side Brush Seal – 2” Polypropylene Side Brush Seal with Aluminum Retainer mounts on the side your frame work. The flexibility of the brush allows complete seal of the roll up door corrugation. Keeping out dust, air flow, pesky insect and rodents.
Header Seal – The header seal is made to attach directly to the header of your door’s opening. Header Seal is gray in color and measures 6″ wide. This is an excellent way to block wind and debris from getting inside storage units or garages.
The Pantheon range of low voltage DC operators are designed to fit enclosed internally in the barrel of the rolling door, providing quiet and efficient operation but requiring only minimal side room. The logic controller is designed to be readily compatible with external transmitters, receivers, photo eyes and sensing edges. The operator is always fitted to the right side.
Insulation is made of a foil-backed, dual-layer polyethylene air-bubble insulation secured in place with a strong adhesive and joined by mylar film (top draft stop and side draft stops are also included).
Universal mount 2” deep 16 gauge galvanized steel guides require no pre-installation modifications for wood, steel, concrete or masonry block applications. Guides have deeper engagement, which allows the curtain to stay in place under more severe wind conditions.
